Dimensionally Stable Anode and Cathode (Titanium, Nickel & Steel)


We, Ti Anode Fabricators Pvt. Ltd. (Tiaano), located in Chennai, India has been established since 1992 with well-equipped latest in-plant facilities & qualified engineers.

We are the pioneer in design, manufacture, supply, installation & commissioning of Membrane Cell Element / Electrolyzers and Electro chemical Equipment by using Exotic metals such as Titanium, Nickel, Hastelloy, etc. for the Chlor – Alkali Industry. Also we are doing the coating by using precious metal oxides of… Iridium, Ruthenium, Palladium etc.

The Chlor-Alkali Industry is one of the major electrochemical processes producing mainly chlorine and sodium hydroxide (caustic soda). Chlorine and sodium hydroxide are among the most produced chemical in the world. Chlor-alkali process involves the electrolysis of sodium chloride solution (brine) producing chlorine at the anode and sodium hydroxide (caustic soda) at the cathode.


 You may refer more details from here:-

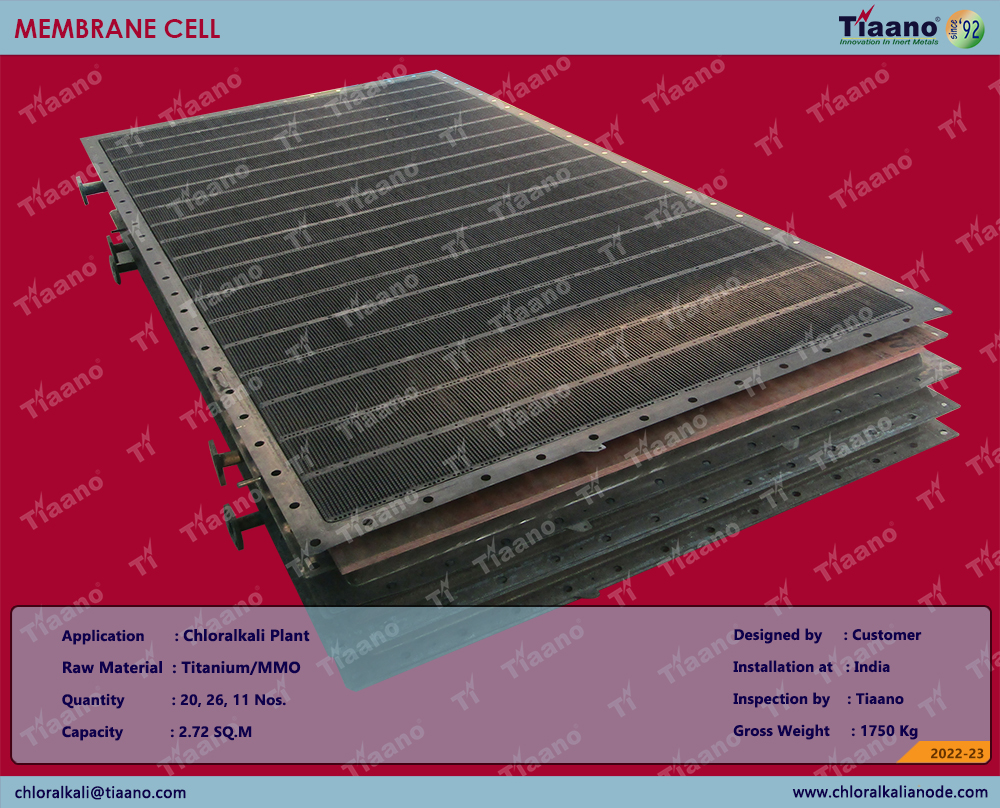

Membrane cell

The most common chloralkali process involves the electrolysis of aqueous sodium chloride (a brine) in a membrane cell. A membrane, such as one made from Nafion, Flemion or Aciplex, is used to prevent the reaction between the chlorine and hydroxide ions.

Basic membrane cell used in the electrolysis of brine. At the anode (A), chloride (Cl−) is oxidized to chlorine. The ion-selective membrane (B) allows the counterion Na+ to freely flow across, but prevents anions such as hydroxide (OH−) and chloride from diffusing across. At the cathode (C), water is reduced to hydroxide and hydrogen gas. The net process is the electrolysis of an aqueous solution of NaCl into industrially useful products sodium hydroxide (NaOH) and chlorine gas.



Application              :           Chlor Alkali Plant

Raw material           :           Titanium / MMO

Quantity                   :           20, 26, 11 Nos.

Capacity                  :           2.72 SQ.M

Designed by            :           Customer

Installation at           :           India

Inspection by          :           Tiaano

Gross weight           :           1750 Kg
